dbt Charts Boards

Since v4.0.0. dbt Charts is a dashboard layer written as YAML files that live in the dbt project next to the models. Each file is a board: named SQL queries that read models through ref(), charts that map a query's columns to a chart type, optional filter variables, and a layout. The dct command-line tool validates, renders and serves the boards, and dbtcharts.com can host them from the repository. Because a board is a text file, it gets the same pull-request review as the models it reads, which is the property Wire wants from a dashboard layer.

Wire adds one optional artifact, dbtcharts, to the full_platform, dbt_development and dashboard_first release types. It sits in the development phase after the dbt models and depends on dbt passing validation. It is optional: a release director asks for it ("and give me dbt Charts boards for the warehouse"), and it stays out of the way otherwise. A release can have both dashboards (Looker, Omni, Metabase or OAC content) and dbtcharts; the boards need no BI tool.

What the command produces

/wire:dbtcharts-generate <release> writes one board per subject area, where a subject area is a folder under the warehouse layer (models/warehouse/w_sales/, models/warehouse/w_finance/). That is how Wire's dbt conventions and most client projects already group facts and dimensions, so the boards land where a reader would look for them. A board covers every fact model in its folder plus the dimensions those facts join to, wherever those dimensions live: the scaffold follows the fact's ref() dependencies in the manifest and matches <x>_fk columns to a dimension's <x>_pk in the catalog. --subject-area w_sales builds that one board.

The command has two halves with a fixed line between them.

The scaffold is a script. scripts/dbtcharts_scaffold.py reads dbt's own artifacts, target/manifest.json and target/catalog.json, and writes the boards without an AI call. It classifies each model as a fact or a dimension from its name, and each column from Wire's naming conventions and the catalog's types: _dt and _ts are dates, _amount, _count and _hours are measures summed, _rate, _pct and _score are averaged, _pk, _fk and _id are never charted, and is_, has_ and was_ flags, at the start of the name or after the entity prefix (user_is_active), are never summed. For each fact it writes a KPI row (record count and up to three measures), a monthly trend of the first measure and a top-10 breakdown by the first categorical column; for each dimension a record count and a breakdown. The same manifest and catalog always produce the same boards, and a test in wire/tests/development/ holds that to be true. Everything the script could not decide goes to needs_human.json with a reason: a model that matches neither convention, a model with no column metadata, a fact with no date, no measure or no categorical column, a nested STRUCT field.

The design is judgement. The scaffold's board is an inventory: one KPI per numeric column, one line per month, one bar per category, for every table. The agent rebuilds each into a dashboard to the brief shipped with the dbtcharts skill (board-design-brief.md): it profiles the models first so nothing charts a mostly-null column or a stopped feed, keeps the tables that matter, writes a KPI row with prior-period deltas from one query, one hero trend over the last 24 months, a few ranked breakdowns and a detail table, in the business language the release already uses (the business rules register, the requirements, the viz catalog), and decides every needs_human item. --auto runs this for every subject area at once, one lane each, without pausing; --subject-area w_sales designs one area, its facts and the dimensions they join. Each decision is a row in the generation report, so the reviewer sees what the scaffold proposed and what changed.

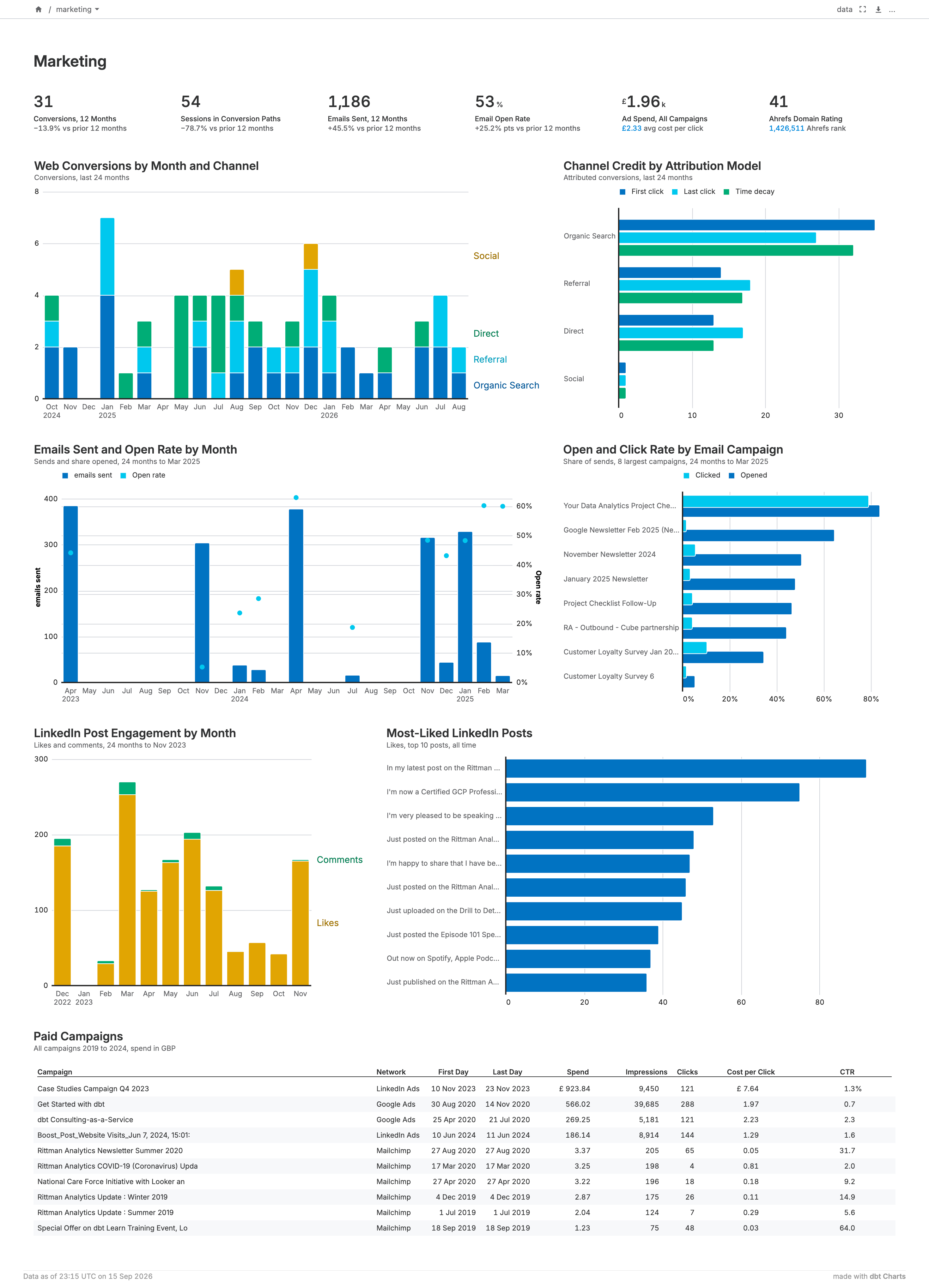

One board as the command leaves it: the Marketing subject area of a live BigQuery warehouse. Six KPIs with deltas against the prior period, a hero trend over the last 24 months, four breakdowns, one detail table, GBP shown as a prefix and named in the subtitles.

The scaffold also writes two project files once: charts/meta.yml, which sets the theme every board inherits (vivid by default; --theme changes it), and charts/index.yml, the landing page dct serve shows at / in place of a file listing, one card per board with an optional logo (--logo, embedded as a data URI because dct serves no static files). --currency '£' switches money formats to a prefix for a non-dollar client, since dbt Charts' currency presets print $ and its axis formats take no other symbol.

The generated landing page for the same warehouse, with the engagement's logo embedded and one card per subject-area board.

Validation

/wire:dbtcharts-validate <release> runs ten checks. Three are dct's own: dct validate charts/ for structure and, with the manifest present, ref() names and model columns; dct validate charts/ --warehouse, a per-query dry run (unbilled on BigQuery, EXPLAIN on Snowflake, Postgres and Redshift); and dct render of every board, which must print no warning other than the expected WARN-DBT-MODEL-COLUMNS-UNRESOLVED (the render warnings name truncated labels, money without a currency format, mostly-null measures and empty queries, which is what a reviewer sees first). The rest are Wire's: queries read models only through ref(); no inline or external data in a board; every KPI has a label, every other chart a title, every query and chart a note; every model in a scaffolded subject area is charted or has a recorded decision; the anchor holds no credentials; every viz-catalog row is mapped or listed as unmapped; one board per subject area with meta.yml and index.yml present. A check that cannot run records unverified, which is not a pass.

Generate does not auto-validate, for the same reason dbt-generate does not: the validate step touches the warehouse, so it is a separate command and a separate decision.

Reviewing and publishing

/wire:dbtcharts-review <release> presents the rendered boards (dct render --format png, written under the release's dev/dbtcharts/) and the generation report, gathers meeting and document-store context as every review does, and records approval or change requests. Change requests are applied by editing the board YAML, never by regenerating with --force, which would discard the curation.

Once approved, dct init ci in the dbt project adds a GitHub Actions workflow that validates every board on every pull request, and dct skills cloud-setup walks the dbtcharts.com connection if the client wants the boards hosted.

Design conventions

How a board should look is a convention, the same mechanism as Wire's dbt, LookML and Cube coding standards: a YAML file in the process registry (conventions/dbtcharts.yml, mirrored to wire/conventions/dbtcharts.yml) that an engagement overrides by placing its own copy at .wire/conventions/dbtcharts.yml. The engagement file wins when present; otherwise the framework default applies. Copy the framework file and change the values; the whole file is read.

The file has two kinds of section.

Section	What it holds	Who reads it
presentation	theme (vivid by default), frame width, currency symbol, landing-page title and logo	dbtcharts-generate, passed to the scaffold as --theme, --currency, --frame-width, --title, --logo
windows	KPI period (12 months vs the prior 12), event period (30 days), trend length (24 months), how a stopped feed anchors its window	the design step and the scaffold (--trend-months)
board_shape	4 to 6 KPIs, 4 to 6 charts, one table, about 8 visualisations, KPI row height, no section headings, the layout row splits	the design step, the scaffold (--kpi-row-height)
chart_defaults	trend as bar with month labels and a left axis, composition as a stacked bar, mixed units on a right-hand axis, rankings horizontal and top 10, tables of 15 rows, no pie over three slices	the design step, the scaffold (--breakdown-limit)
formats	which slot a format lives in per chart family, the presets for counts, percents and deltas, and how a non-dollar currency is shown (KPI prefix, plain axes, currency named in the subtitle)	the design step
render, profiling	which dct render warning codes must be cleared, and the null-share and point-count thresholds below which a column is not charted	the design step, validate Check 10
naming, layout, sql, project_files	rules with an id and a severity: KPI labels of at most 4 words and no table-name prefix; every chart titled and noted; every KPI formatted; trends with time_unit; no hidden endpoint labels; no ## Section rows on a dashboard; no board-level theme:; BigQuery forms the dct static checker rejects; dbt_charts.yml holding sources: only	lint_conventions.py --domain dbtcharts, run by generate Step 6 and validate Check 11

An engagement that bills in pounds, for example, sets presentation.currency: "£" and a landing-page title and logo, and every board generated for it carries £ on its KPIs and tables, plain numbers on its axes with "GBP" in the subtitles, and the client's logo top-right on the home page. Nothing in the commands or the skill changes.

Notes on the dct CLI (0.8)

Things found the hard way and recorded in the dbtcharts skill so nobody rediscovers them:

• Build the manifest with dbt compile, not dbt parse. dct derives model columns from compiled_code; without it every Jinja-wrapped model reads as "contains no SELECT statement".
• dbt_charts.yml holds sources: only. A serve: or theme: key there is rejected; the dialect comes from the profile target and the theme from charts/meta.yml.
• The static column check misreads DATE_TRUNC(d, MONTH), WEEK(MONDAY) and r'...' raw strings. The scaffold writes DATE(EXTRACT(YEAR FROM d), EXTRACT(MONTH FROM d), 1); the skill lists the other substitutes.
• dct validate --warehouse needs the warehouse adapter inside the tool environment (uv tool install dbt-charts --with dbt-bigquery), and on Apple silicon an arm64 Python named explicitly.
• Currency presets print $ and axis formats accept no other symbol; non-dollar money uses a KPI prefix and plain axes with the currency in the subtitle.
• dbt show on dbt Fusion rewrites target/manifest.json, which dct reads. Design lanes profile with --target-path <scratch> so a concurrent render never reads a half-written manifest, and the orchestrator compiles once before the whole-set validate.
• --auto lanes follow the director model's lane contract: the orchestrating session dispatches them, each writes a state file under lanes/ after every completed item, and a lane silent for 30 minutes is re-dispatched. The generation report is assembled from those files.

Where the rules live

What	Where
The three commands	wire/specs/development/dbtcharts/{generate,validate,review}.md
The scaffold	wire/scripts/dbtcharts_scaffold.py, shipped in the plugin under scripts/
The skill and the design brief	wire/skills/dbtcharts/SKILL.md, wire/skills/dbtcharts/board-design-brief.md
The design convention	conventions/dbtcharts.yml in the process registry, mirrored to wire/conventions/dbtcharts.yml; engagement override at .wire/conventions/dbtcharts.yml; linted by wire/scripts/lint_conventions.py --domain dbtcharts
The graph entries	dbtcharts in full_platform.yaml, dbt_development.yaml, dashboard_first.yaml (optional, after dbt validate PASS)
The tests	wire/tests/development/validate_dbtcharts_scaffold.py (a fixture manifest and catalog round-tripped byte for byte) and validate_dbtcharts_conventions.py (the convention's sections present, the scaffold's output lint-clean, every mechanical rule firing on a bad board)

See also

• Tutorial: dbt Charts Boards: the three commands on a worked example, the convention override, and publishing to dbt Charts Cloud
• Wire Agents (the semantic-layer-developer agent runs the generate and validate commands)
• Full Platform Build, dbt Development, Dashboard-First
• Command Reference
